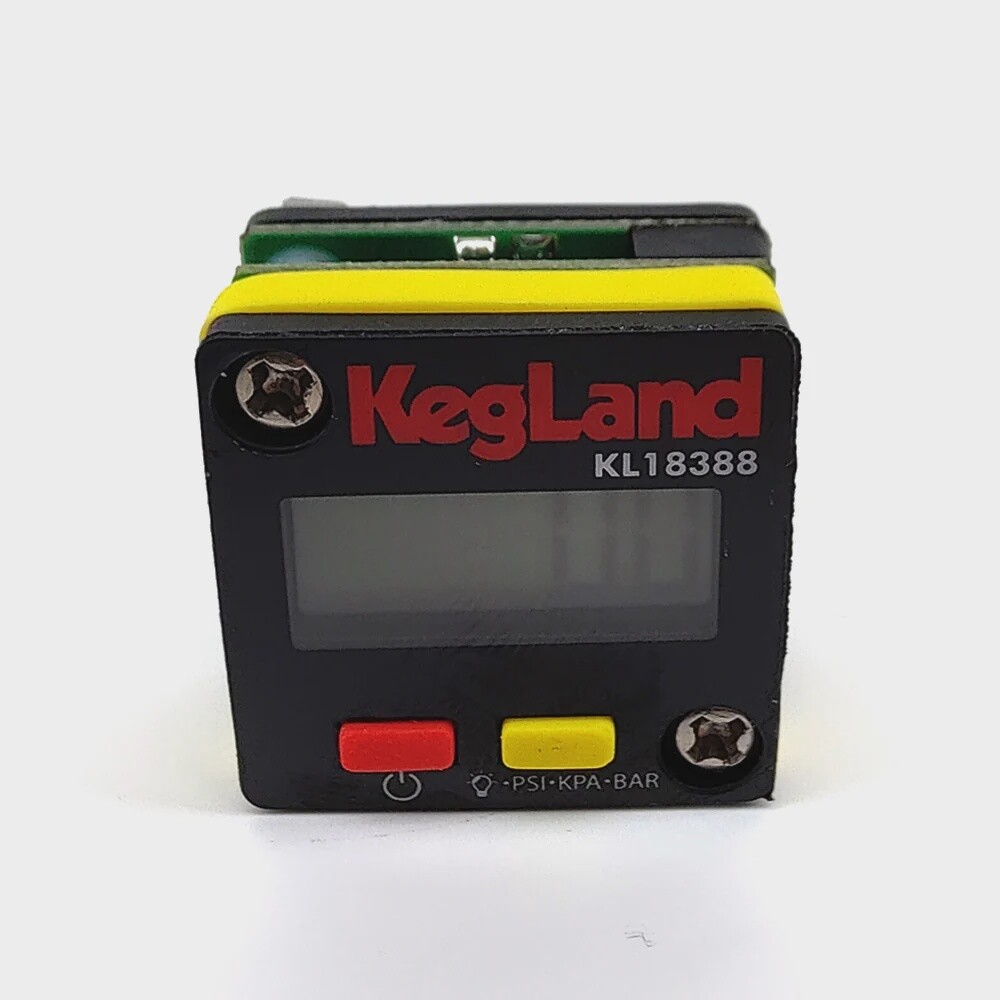

Mini Digital Illuminated Gauge 0-90psi

Traditional analogue gauges require a small capillary mechanism where a small pipe expands and unravels under pressure. This in turn drives a mechanical cog to rotate the gauge needle. This age old technique works quite well especially in large gauges but as this mechanism is manufactured smaller and smaller a trade-off between accuracy and size becomes the issue. With very small gauges such as a 27mm x 27mm Mini Gauge it's difficult to make them better than 10% accuracy due to the physical constraints of the mechanical components.

KegLand has developed the worlds most compact mini digital gauge with backlight illumination. This very compact design retains high accuracy while still meeting the desirable small form factor. This meets the growing need as mini keg systems, mini regulators and other more compact keg dispensing solutions is required.

Specifications:

Battery Life: More than 2 years (using the mini gauge once a day)

Battery Type: CR2032

Auto Battery Saver: YES, screen automatically turns off after 15sec

Size: 27mm x 27mm

Radial O-ring Stem: 7.8mm Bore

NOTE: This gauge is not suitable for measuring pressure of liquids. It is only for measuring gas pressure. If liquid gets into the pressure transducer it will damage the gauge. If you want to measure liquid pressure you can purchase one of the analogue gauges.
